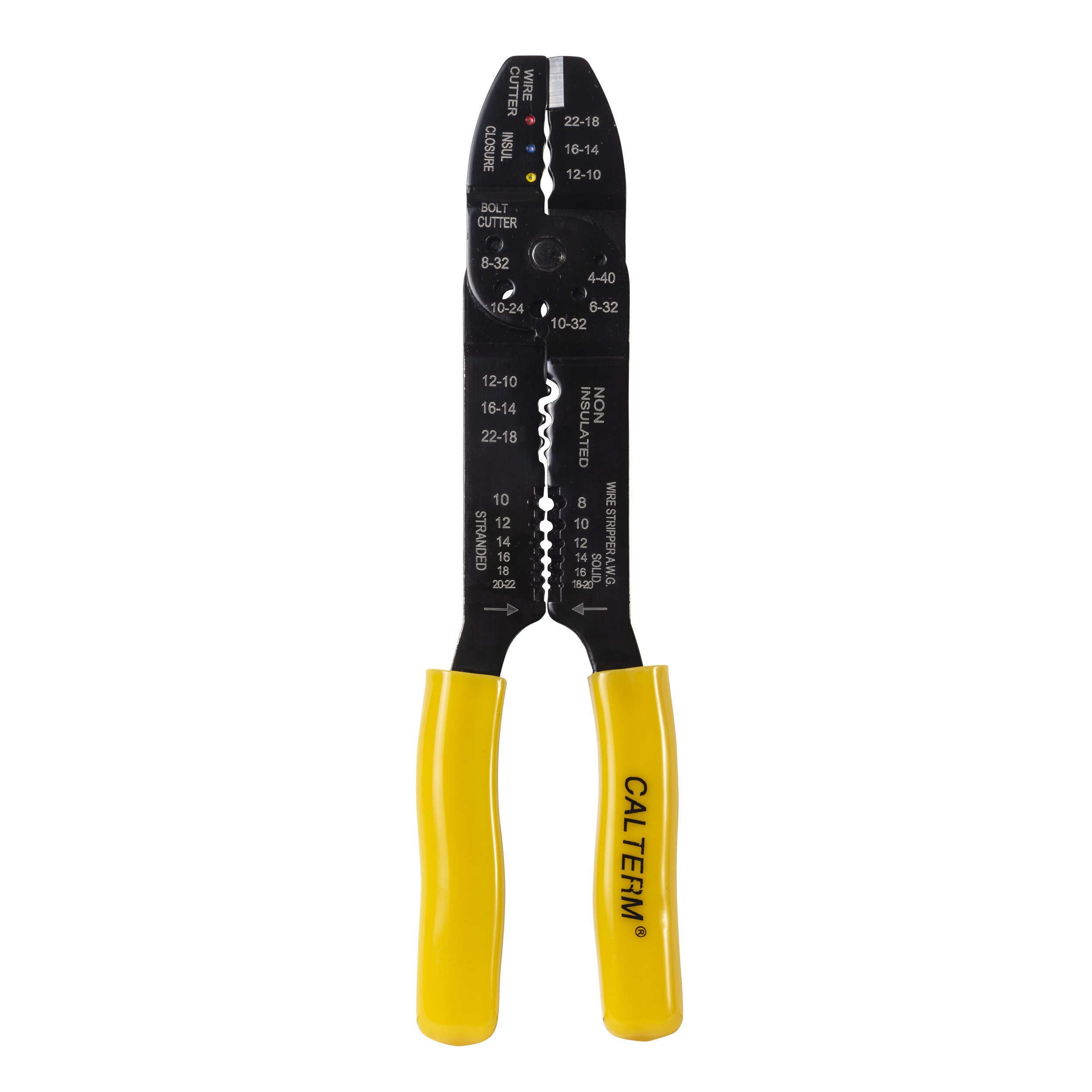

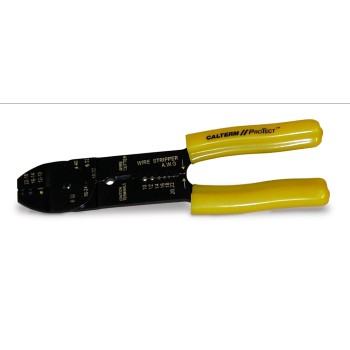

Protect 9 inch Cushion Grip Crimp Tool

Part # 66223

This medium length tool cuts wire and strips/crimps insulated terminals. Features cushion grip handles with a nose cutter that reaches tough wiring More...

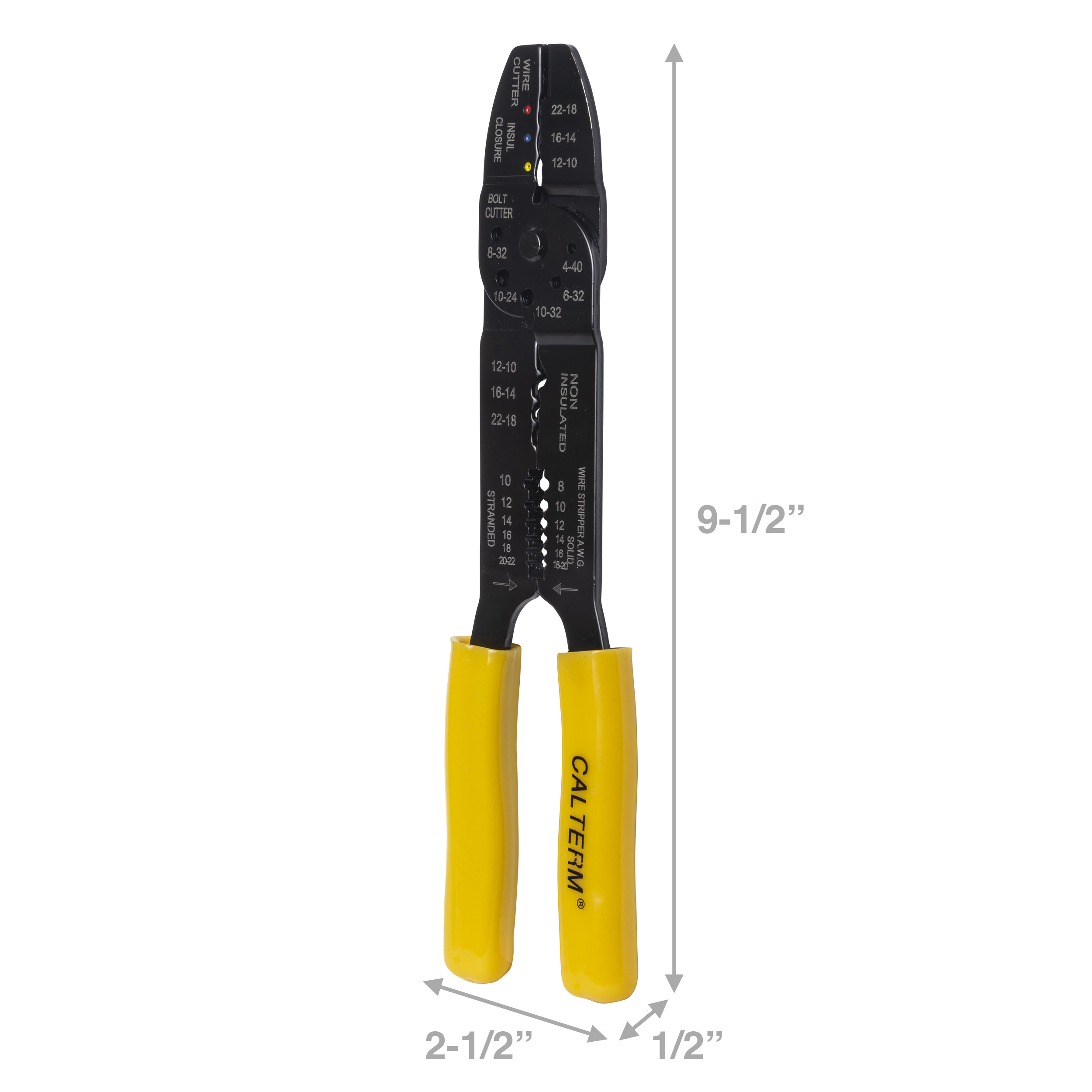

Each in Package Height (in) * 0.7
Each in Package Width (in) * 11.1
Each in Package Length/Depth (in) * 3.6
Each in Package Weight (lbs) * 0.5966
Inner Pack Weight (lbs) * 3.58
BigCTN Weight (lbs) * 250.88
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

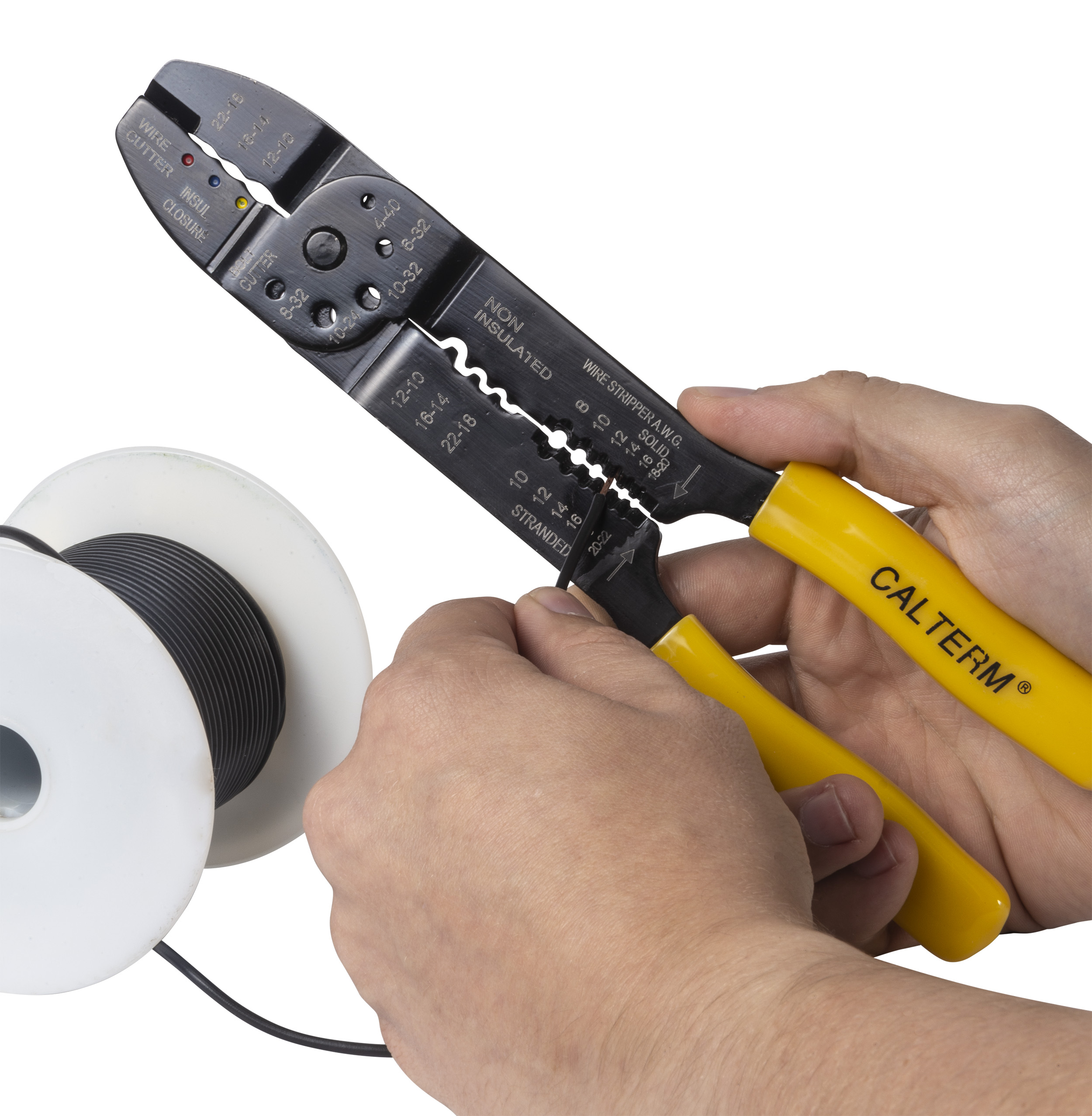

This medium length tool cuts wire and strips/crimps insulated terminals. Features cushion grip handles with a nose cutter that reaches tough wiring spots. This tool also cuts and rethreads nuts and bolts.

  • Cut copper and aluminum wire
  • Strip: 8-20 AWG Solid wire, 10-22 AWG Stranded wire
  • Crimp: 10-22 AWG insulated or noninsulated terminals
  • Bolt Cutting: 4-40, 6-32, 8-32, 10-32, 10-24
  • Hardened steel cutting blades provide strength and durability

Warranty One Year
