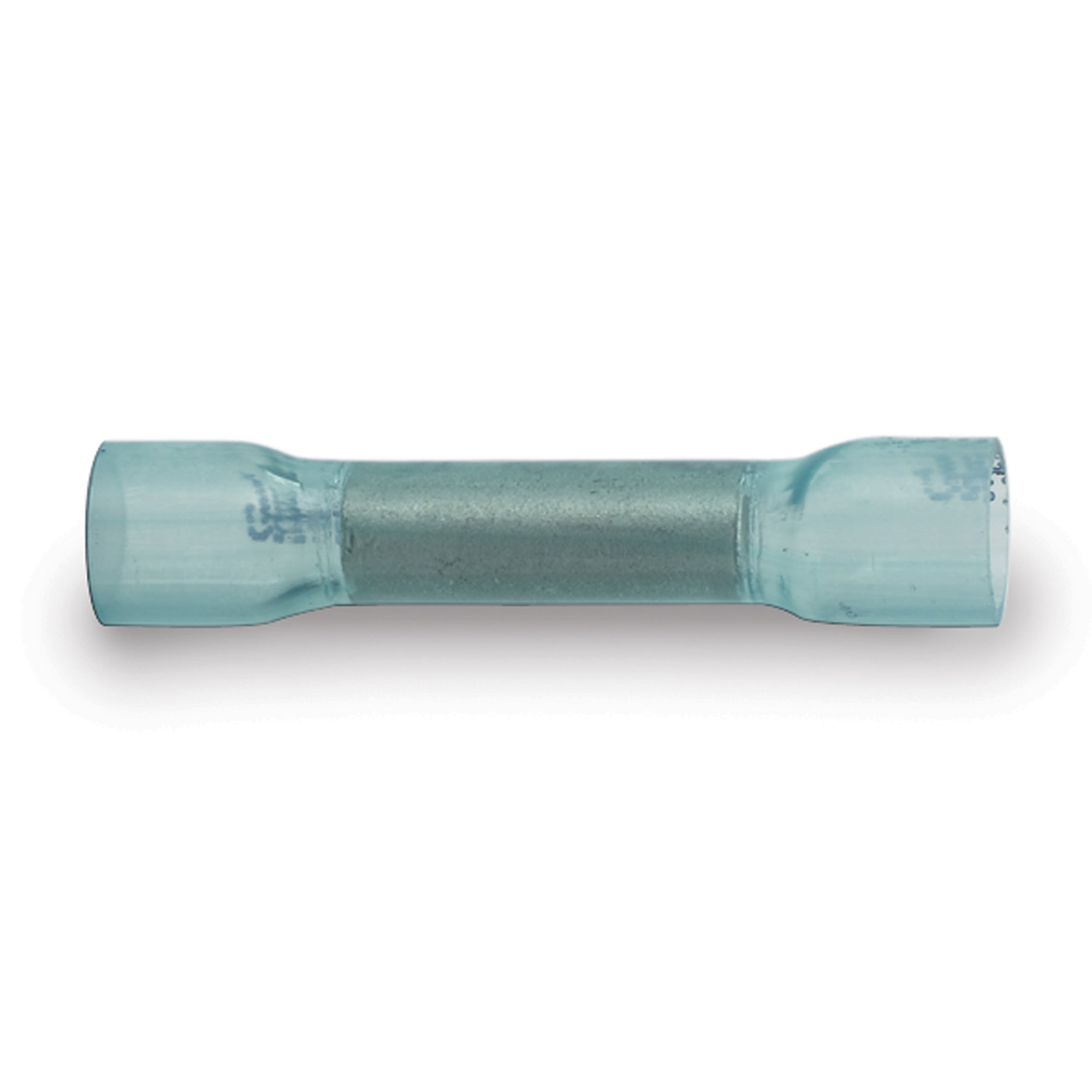

Package of 10 Adhesive Lined Heat Shrink Butt Splices for 16-14 AWG (1.25 mm²) Gauge Wire

Part # 65707

Shrink-Seal butt connectors are specially designed for waterproof heat shrink applications. Our butt splices provide quick and reliable crimp-type More...

WHERE TO BUY
Each in Package Height (in) * 6
Each in Package Width (in) * 3
Each in Package Length/Depth (in) * 0.75
Each in Package Weight (lbs) * 0.0516
Inner Pack Weight (lbs) * 0.31
BigCTN Weight (lbs) * 24.64
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Blue

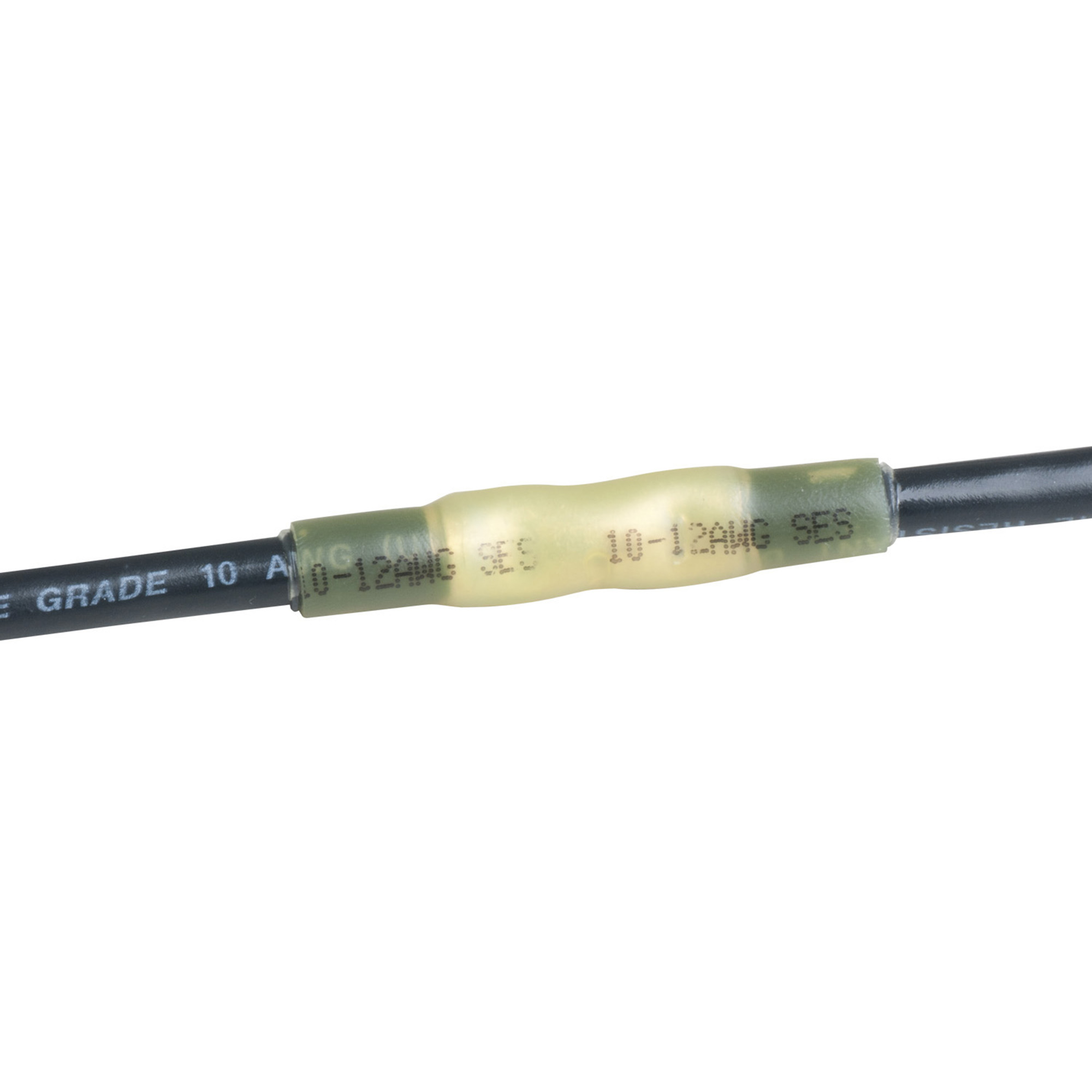

Shrink-Seal butt connectors are specially designed for waterproof heat shrink applications. Our butt splices provide quick and reliable crimp-type connections and wire repairs. They are available for a wide variety of wire size and insulation types. Simply crimp both ends for a long-lasting, secure connection.

  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow. Brazed seam for maximum strength
  • UL Listed and CSA Recognized
  • Waterproof
  • Glue liner that melts and seals
  • Engineered for harsh environments
  • Rated @ 300V max

Warranty Standard 1 Year
Model Adhesive Lined Heat Shrink Butt Splices
