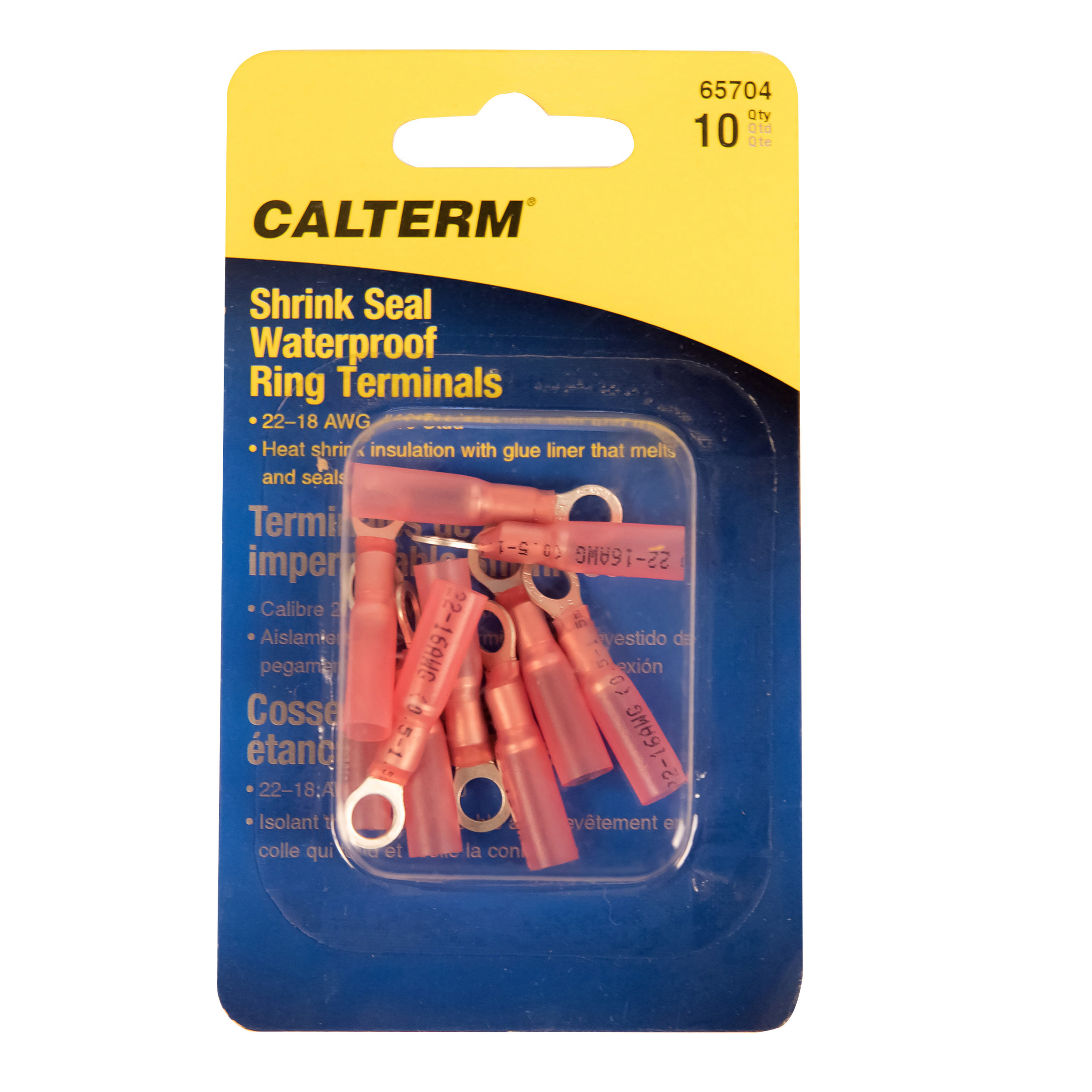

Package of 10 Adhesive Lined Heat Shrink Ring Terminals for 22-18 AWG (1.25 mm²) Gauge Wire

Part # 65704

Vinyl-insulated ring terminals mate, connect, or terminate a single wire. The ring shape of the terminal allows for connection to a screw or stud type More...

WHERE TO BUY
Each in Package Height (in) * 0.58
Each in Package Width (in) * 3.5
Each in Package Length/Depth (in) * 7
Each in Package Weight (lbs) * 0.0456
Inner Pack Weight (lbs) * 0.26
BigCTN Weight (lbs) * 21.8
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Yes - Compliant
Color Red

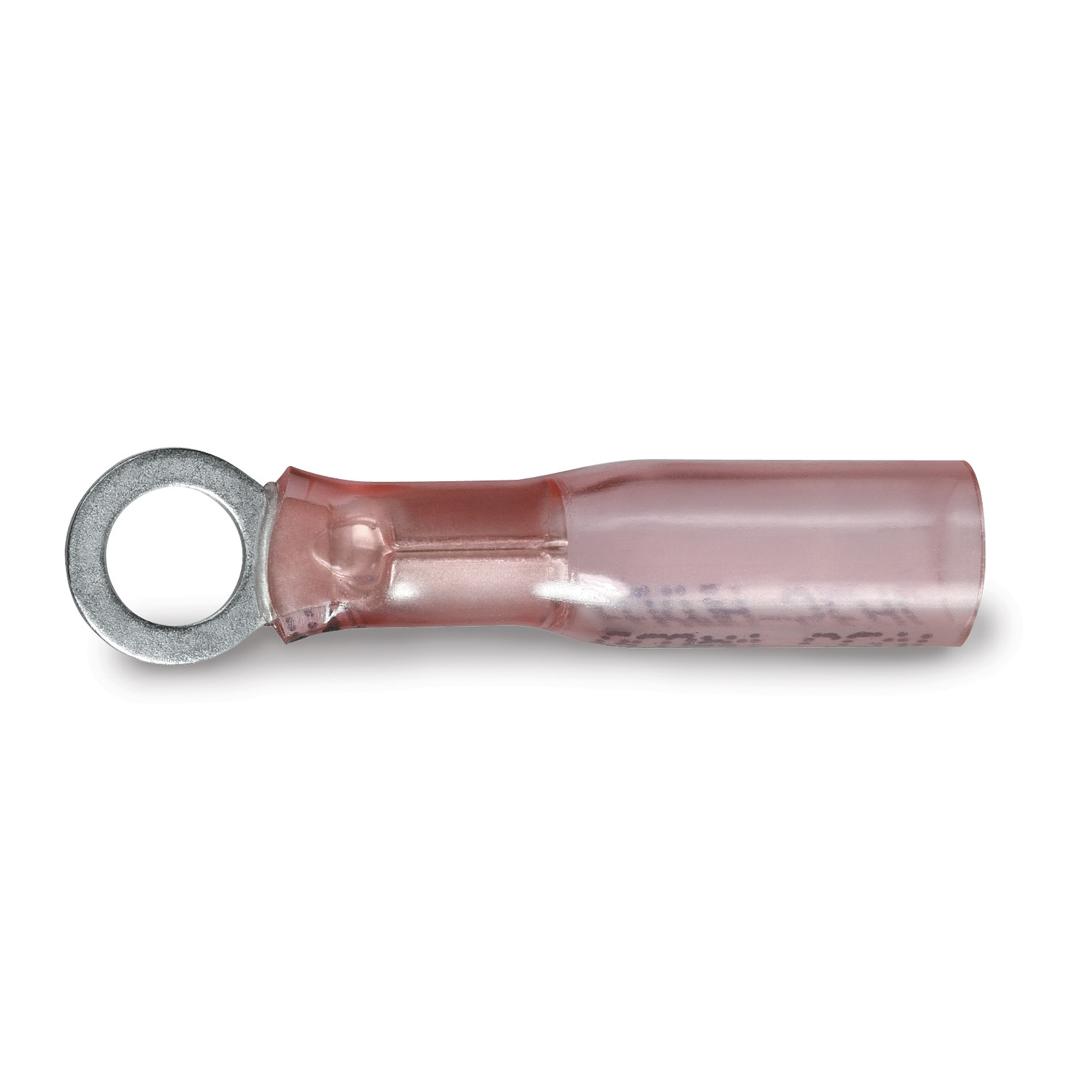

Vinyl-insulated ring terminals mate, connect, or terminate a single wire. The ring shape of the terminal allows for connection to a screw or stud type electrical application. Used for terminating wires and securing to a bolt or stud. Vinyl-insulated ring terminals are commonly used in automotive and marine vehicles, but can be used in various other electrical applications.

  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow. Brazed seam for maximum strength
  • UL Listed and CSA Recognized
  • Waterproof
  • Glue liner that melts and seals
  • Engineered for harsh environments
  • Rated @ 300V max

Warranty Standard 1 Year
Model Adhesive Lined Heat Shrink Ring Terminals
